Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine Cosmetics Filling Machinery Water Filling Machine

               CNC Liquids Filling Machine                      Small Automatic Electric CNC Quantitative Filling MachineThe GFK-280 liquid filling machine adopts microcomputer to control the filling time, motor speed and other fa

Featured Products


               CNC Liquids Filling Machine



Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine Water Filler for Cosmetics Filling Machinery
Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine Water Filler for Cosmetics Filling MachineryAutomatic Desktop CNC Peristaltic Pump Liquid Filling Machine Water Filler for Cosmetics Filling Machinery

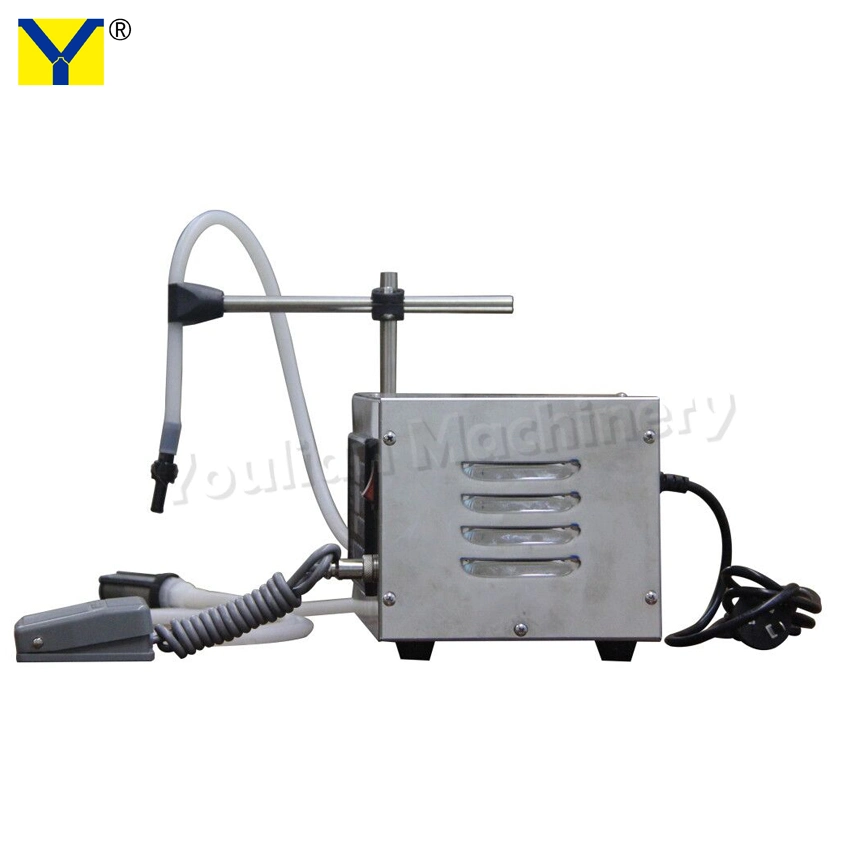

Small Automatic Electric CNC Quantitative Filling Machine
The GFK-280 liquid filling machine adopts microcomputer to control the filling time, motor speed and other factors on the micro water pump, achieve uniform, repetitive error minimum large liquId ting method.
The pump head and motor are imported originally from Japan, having stable and reliable performance, and long service life, The magnetic pump head is driven by magnetic force. The pump head is connected with the motor without shafts, avoiding the worries of shaft seals breakdown causing splash and leakage, or excessive pump load causing motor burning To start or stop the machine by transducer, the filling time shall be accurate to 0. 01 second to guarantee the filling accuracy, and the error shall be less than 2%.
With full functions, the GFK-280 CNC quantitative filling machine can fill fluid manually and with pedal Intermittently, it can do interval fitting automatically, and the time interval is adjustable.

                      Specifications
                                  Extraordinary quality, constant innovation!
Model
GFK-280
Power Supply
220/110V      50/60HZ         40W
Control Method
Manual and Automatic
Filling Head
1
Filling Range
5-4000ML
Suck Diastance
200mm
Max Flow Rate
3.2L/min
Weight
5KG


Advantages

> Automatic counting function, effectively control filling quantity
> LCD display, touch screen is very easy to operate
> Filling Accuracy is high, precise volume
> Reasonable design, made of stainless steel, meet GMP requirement
> Suitable for filling low-viscous liquid without pellets
> Integrates the advantage of self-suck pump and chemical pump
> Self suck, heat protect, stable working and continuous idle or load operate for long time



1. Filling adjustment: it is for setting time for each fluid filling, the time unit is second;
2.Power switch of the filling machine: when the machine stops running, please turn off the power;
3. Manual and automatic filling switch button: it is for changing the work status of the equipment (automatic: control manual control);
4. Manual filling button: when the button pressed, it will fill fluid and stop running automatically;
5. Time interval for filling: after filling a bottle of fluid, the machine will stop running automatically for a while for a second filling. This position is for adjusting the time interval ;
6. Filling speed adjustment: it is for controlling the rotating speed of the ligh pressure pump, to control the fluid runoff in filling;
7. High precision miniature magnetic pump: it is the power source of the filling machine, Which can start filling fluid when the pump starts running.


Application
Various kinds of imported materials synthesis and corrosion by pump body, pump body and motor pump body separation, no mechanical metal parts, no wear. With oil resistance, heat resistance, acid and alkali resistance, corrosion resistance, chemical resistance and other properties; widely used, almost all of the flow of a liquid can filling, especially is suitable for the oil, detergent, alkali liquid, high corrosion liquid filling.
Widely used in pharmaceutical, chemical, food, grease, cosmetics and other industries, is suitable for low viscosity, particle free liquid filling, small batch production.


                     Factory show
                            Strong Team, 3000 square meters own Factory and workshop!
Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine Water Filler for Cosmetics Filling Machinery

                      Honor Show
                                 Exporter CE Certificater and 15 patents!

Automatic Desktop CNC Peristaltic Pump Liquid Filling Machine Water Filler for Cosmetics Filling Machinery

Q1: Are you a factory or trading company?
A1: We are a factory specialized in daily cosmetic, foods, beverage, Pharmastic Filling Capping and Labeling Machine and whole production line. Such as, Liquid Filling Machine Paste Filling Machine , automatic capping machine ,semi-automatic capping machine,automatic labeling Machine and semi-automatic machine ,coding machine and other packaging mahcine.filling and other packing machines.

Q2: Where is your factory location? How can I visit there?
A2: Our factory is located in Wenzhou, China. You could visit us by high speed train or by plane). It's only 15 minutes from our factory to Wenzhou South Train station .It's only 30 minutes from our factory to Wenzhou Yonqiang International Airport. then we could arrange a car to pick you up there.

Q3: How does your factory do regarding quality control?
A3: Quality is priority. People from Youlian always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment Our factory has gained CE authentication

Q4: What's the guarantee if we purchase from you?
A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any main parts be broken within the warranty and isn't caused by improperly operation then we would offer the new parts for free and we do prepare for one set wearing part come with the machine.

Q5: How about the after service?
A5: There's no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer and engineer daily salary USD150/day.Ours service Team will reply you in 12hours by email, and in time reply by whatsapp or wechat as soon as possible when you have any questions.
