Vertical Axial flow pump / Axial flow propeller pumps are of rugged, heavy-duty construction designed to operate in a multitude of applications requiring the movement of a high volume of water at a low discharge pressure. They are used extensively for pumping water from sources including lakes, cooling ponds, tanks, rivers and oceans.
An Axial flow pump / Axial flow propeller pumps, is a common type of pump that essentially consists of a propeller in a pipe. The propeller can be driven directly by a sealed motor in the pipe or mounted to the pipe from the outside or by a right-angle drive shaft that pierces the pipe.
Main Range of Axial flow pump / Axial flow propeller pumps :
Flow: 650m3/h - 36000m3/h
Head: 1m - 11m
Liquid Temp.: 2oC - 80oC
Outlet Dia.: 350mm -1600mm

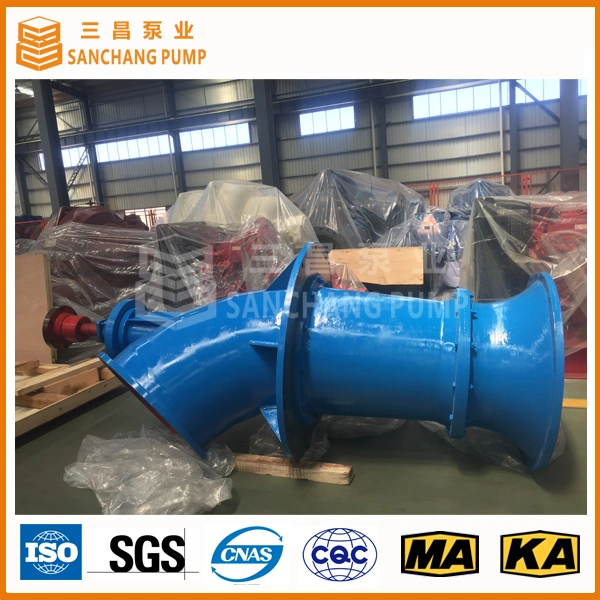

Pumps In Workshop :
The main advantage of an Axial flow pump / Axial flow propeller pumps is that it can easily be adjusted to run at peak efficiency at low-flow/high-pressure and high-flow/low-pressure by changing the pitch on the propeller (some models only).
These pumps have the smallest of the dimensions among many of the conventional pumps and are more suited for low heads and higher discharges.
Applications for Axial flow pump / Axial flow propeller pumps include raw water intake, dewatering, storm water removal, and flood control. These applications are found in a variety of markets including: urban and rural municipal water, government, industrial and irrigation and more.
Material of flow passage components:
The Axial flow pump / Axial flow propeller pumps could be customized with different material, main material configuration followed :
|Recommended Material Configuration (For reference only)|
|Item||Clean water||Drink water||Sewage water||Hot water||Sea water|
|Case & Cover||Gray iron (HT250)||S.S304||Ductile iron (QT500)||Cast Steel||Duplex S.S 2205|
|Impeller||Gray iron (HT250)||S.S304||Ductile iron (QT500)||2Cr13||Duplex S.S 2205|
|Wearing ring||Gray iron (HT250)||S.S304||Ductile iron (QT500)||2Cr13||Duplex S.S 2205|
|Shaft & Sleeve||C.S 45||S.S420||40Cr||40Cr||Duplex S.S 2205|
|Column Pipe||C.S Q235||C.S Q235||C.S Q235||C.S Q235||Duplex S.S 2205|
|Remarks: detailed material list will according to liquid and site conditions|
Pumps before delivery
