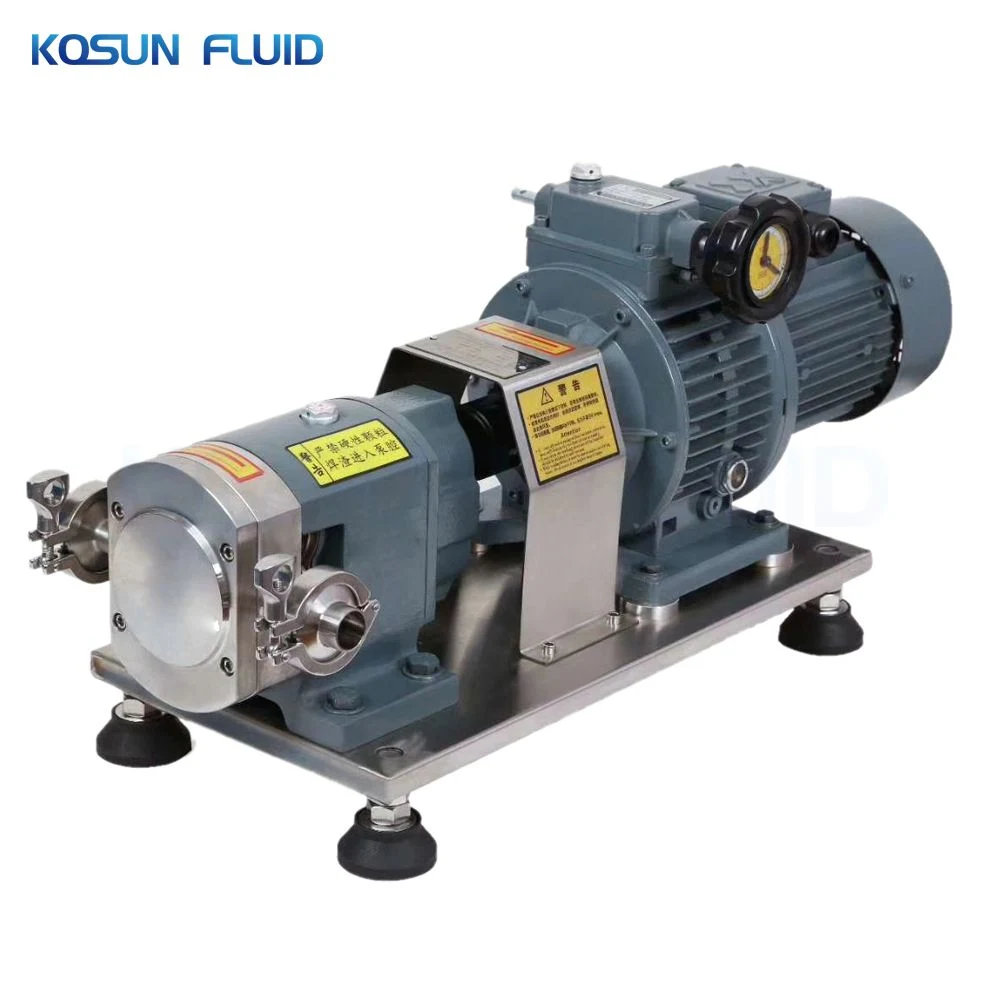

  KOSUN FULID stainless steel lobe pump
Rotary lobe pump basically consist of two rotary lobe rotor switch rotary synchronously inside a casing without touching each other.
The two rotors divide the rotor chamber into to several smaller rooms and move in order as: a-b-c-d. At position a,only room 1 if filled with medium; at position b, some medium is closed in room B; at position C, some medium is also closed in room A,and at position d, room A and B are connected with room ii; here the medium is delivered to the outlet. With this circulation,The medium (material) is delivered through the pump continuously.
Technical parameters:
As the rotary lobe pump works, the spaces between the lobes and the casing are successively filled with fluid, which is transported to the discharge nozzle with a fixed amount of displacement.
The pumped fluid forms a continuous stream thanks to the tolerances between the lobes and the pump casing, Thus ensuring an efficient pumping.
Profile type
Sanitary stainless steel rotor rotary lobe pump for syrup shampoo chocolate viscosity
material
SS304 or SS316L
Capacity
0-100T (Customized)
Pressure
0-8bar
Viscosity
1-1000000pas
rotors type
butterfly rotors/Trefoil rotor
temperature
0-200 celsius degree
relief valve
NO
0-3bar
mechnical seal type
Sinlge mechanical seal
Double flushed mechanical seal
connection type
Clamp
Union
Flange
Inlet outlet direction
Left and right or Up and down
Jacket
No
hotwater
motor type
Normal
Planetary
inverter
Speed
0-1000RPM
