Peristaltic pump filling e-liquid filling capping machine with SGS and CE certification Introduction of machine This machine is mainly available to fill e- liquid into various round and flat glass and plastic bottles with the filling range from 5-30ml.High precision cam provides a regular plate to position, cork and ca

Featured Products

Peristaltic pump filling e-liquid filling capping machine with SGS and CE certification
Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Introduction of machine

This machine is mainly available to fill e- liquid into various round and flat glass and plastic bottles with the filling range from 5-30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; peristaltic pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine with advantage of high position .

Main parameter
Filling range

2-50ml 10-150ml 30-300ml 50-500ml
Capacity
20-30 bottles/minute
Capping Rate:

99%
Air Supply
1.3 m3/h
Voltage

220V/380V
Dimension
2000*900*1800mm
Filling error

≤±1%
Weight
450kg


Main Features

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Multi-failure prompt function (such as depression, no filling and no inserting plug etc).
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with capping machine


Application
Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification



Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Turntable:
According to customer bottle shape custom made .Bottle could be round bottle , square bottle

Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Filling system:
Filling system according to material viscosity to make .It could be piston direactly filling , piston with hopper and peristaltic pump filling . It suitable liquid , paste and cream .

Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Cap loading system:
Three stations for plastic bottle inner cap and glass bottl dropper . Easy operate for different kind bottle.

Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

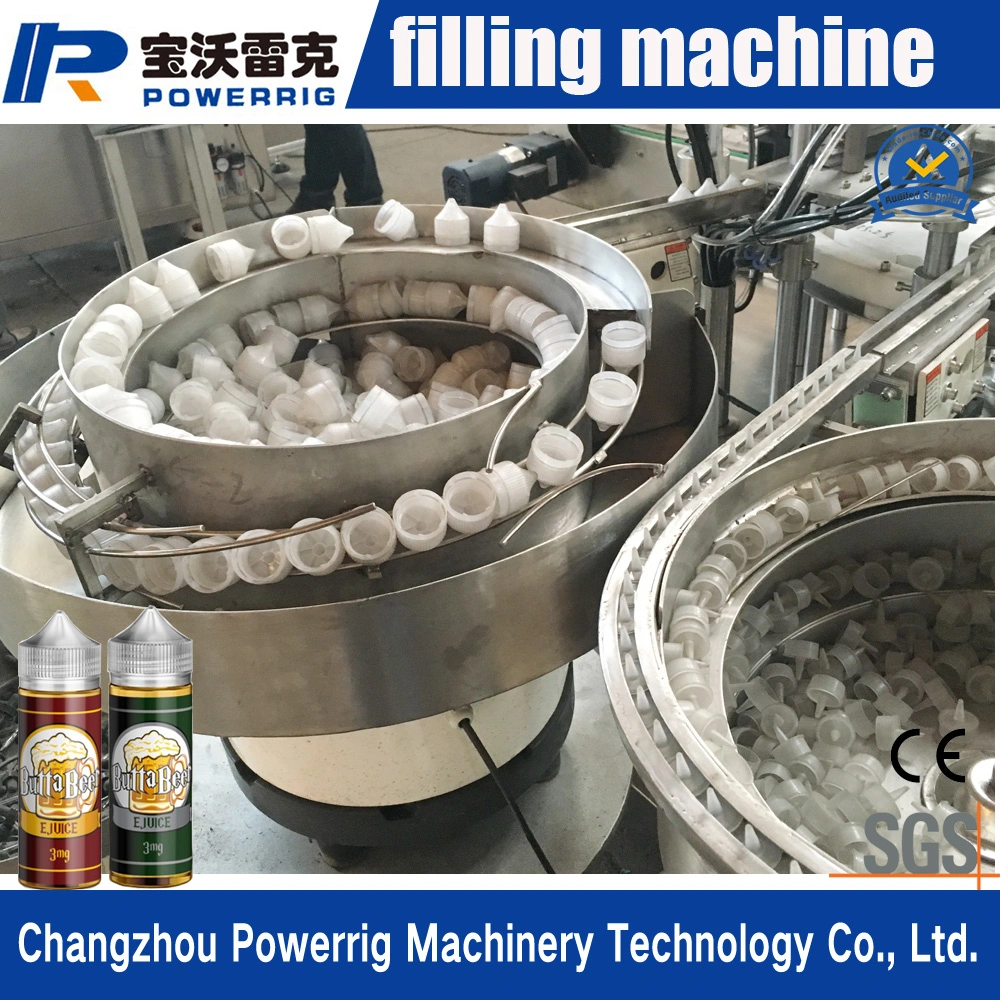

Vibrating bowl:
According to plastic bottle inner cap and outer cap or glass bottle dropper size to custom . Vibration the cap into guideway and automatic loader the cap on bottle mouth .

Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Capping system:
According to cap size to custom made , capping force and height is adjustable .


Package:

Peristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce CertificationPeristaltic Pump Filling E-Liquid Filling Capping Machine with SGS and Ce Certification

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

Customized service

1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.



FAQ

Q: Are you trading company or manufacturer ?
A:We are factor lie in Jiangsu province, all machine is made by ourself and we can provide customize service according to your requirement.

Q: How can I ensure that I get high-quality machine?
A:As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

Q: My material viscosity is very high , how can you fix it ?

A: For some material we can make heating and mixing hopper to make the material can flow .And according to material viscosity to decide use piston pump filling.

Q: How can I install my machine when it arrives?
A: The standard machine we will adjust it before shipping , when you get it you can directly use it . If you have other size tube need change mold , we will send you video of how to adjust it . Also , we can offer over sea technical service to come your factory install machine.

Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service

Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.

Q:How about the spare parts

 A: After we deal down all the things , we will offer you a spare parts list for your reference.
