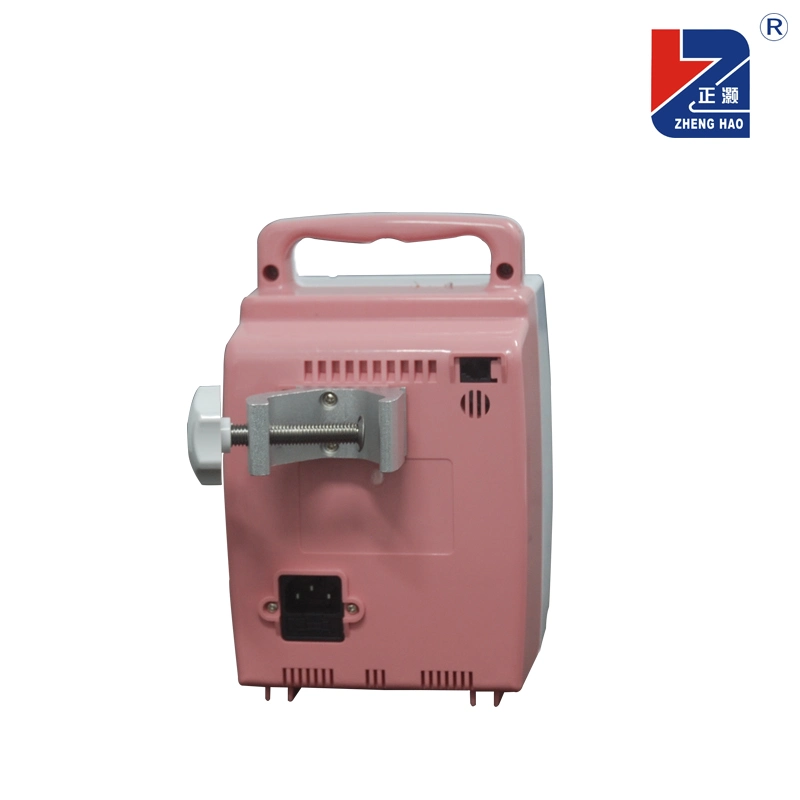

The functions of syp2900 are as follows:
1. Setting function: 1. Set the infusion flow rate value function.
2. Set the infusion flow value function.
3. Set the value function of infusion drop.
2. Display mode: high brightness digital display.
3.When the infusion pump works, the infusion pump can work normally by pressing any key, which is safer.
5. AC and DC working modes.
6.Observation window function, real-time observation whether the operation of infusion set is in a straight line.
|Peristaltic pump test|
Velocity setting range
Capacity setting range
Fast infusion speed
After the infusion, the infusion rate was 1ml / h.
Bubble detection method
Ultrasonic testing method.
Detection bubble size diameter ≤ 3mm (medium speed operation)
Infusion pump self check function
|Power on self-test and real-time detection of infusion process|
Sound and light alarm for abnormal infusion state
|Blocking, infusion completed, battery under voltage, exhaust bubble, door opening, motor fault alarm.|
Setting parameters of infusion pump data memory
|It can store flow rate value, flow value, blocking alarm level and drop value.|
Blocking level setting
The blocking level is set to two levels: Sp1 and SP2.
Injection real time display function
The injection volume can be displayed in real time.
Exhaust bubble function
Before infusion, when there are bubbles in the injection pipeline, press and hold the exhaust bubble key, and the bubbles in the injection pipeline will be emptied at the flow rate of 999ml / h, and the flow rate display screen will display 999ml / h. After the bubbles are discharged, release the exhaust bubble key, and then press the injection button for infusion.
Night infusion pump door lamp on function
At night, the LED lights up when the door is opened. At this time, the infusion will be stopped automatically.
Alarm content flashing function
When there is an alarm, the corresponding alarm content character will flash.
Turn on the power switch and wait for more than one minute before the "standby indicator light flashes" or when there are bubbles and blocking alarms, press the mute key, and wait for more than one minute, "standby indicator light flashes".
Type of velocity setting
Select "ml / h"
Greater than 65dB (sound level at 1m distance)
Internal power supply
Rechargeable lithium battery DC12V, 2000mAh.
Battery charging time
|Less than 15va|
|Class I BF type the equipment is ipx1 type of anti dripping liquid|
Infusion pump noise
|Less than 55dB (sound level at 1m from the front)|
Using ring condition
Rated working low temperature temperature 5 ºC
Low temperature storage temperature - 40 ºC
Rated working high temperature temperature 40 ºC
High temperature storage temperature 55 ºC
Rated working humidity 40 ºC ≤ 90% ± 2RH
Moisture heat storage 40 ºC 90% ± 2RH
|Frequency cycle range 3-8hz|
Displacement amplitude 7.5mm (peak value)
The number of scanning cycles in each direction is 4
|Electrostatic discharge 15kV for air discharge|
Radiation electromagnetic field strength 400A / M
|Rated voltage 1.5kV, duration 60s ± 5S|
|The duration of DC resistance should be greater than 500m Ω for 60s|
|ABS plastic (flame retardant)|
1. Aluminum alloy peristaltic pump body, more accurate infusion.
2. Color screen color large screen display, observation more clear.
3. Import special chip, program running more stable.
4. Keyboard lock function, anti misoperation is safer.
5. Automatic conversion of flow rate and drop number, convenient setting.
6. Automatic control system, suitable for a variety of infusion sets.
7. Automatic adjustment of infusion precision system.
8. Set the observation window of infusion set to ensure the stability of infusion.
9. High quality after-sales service makes it easier to use Q & A at any time.
