Vegetable Oil Transfer Pump/Electric Oil Transfer Pump

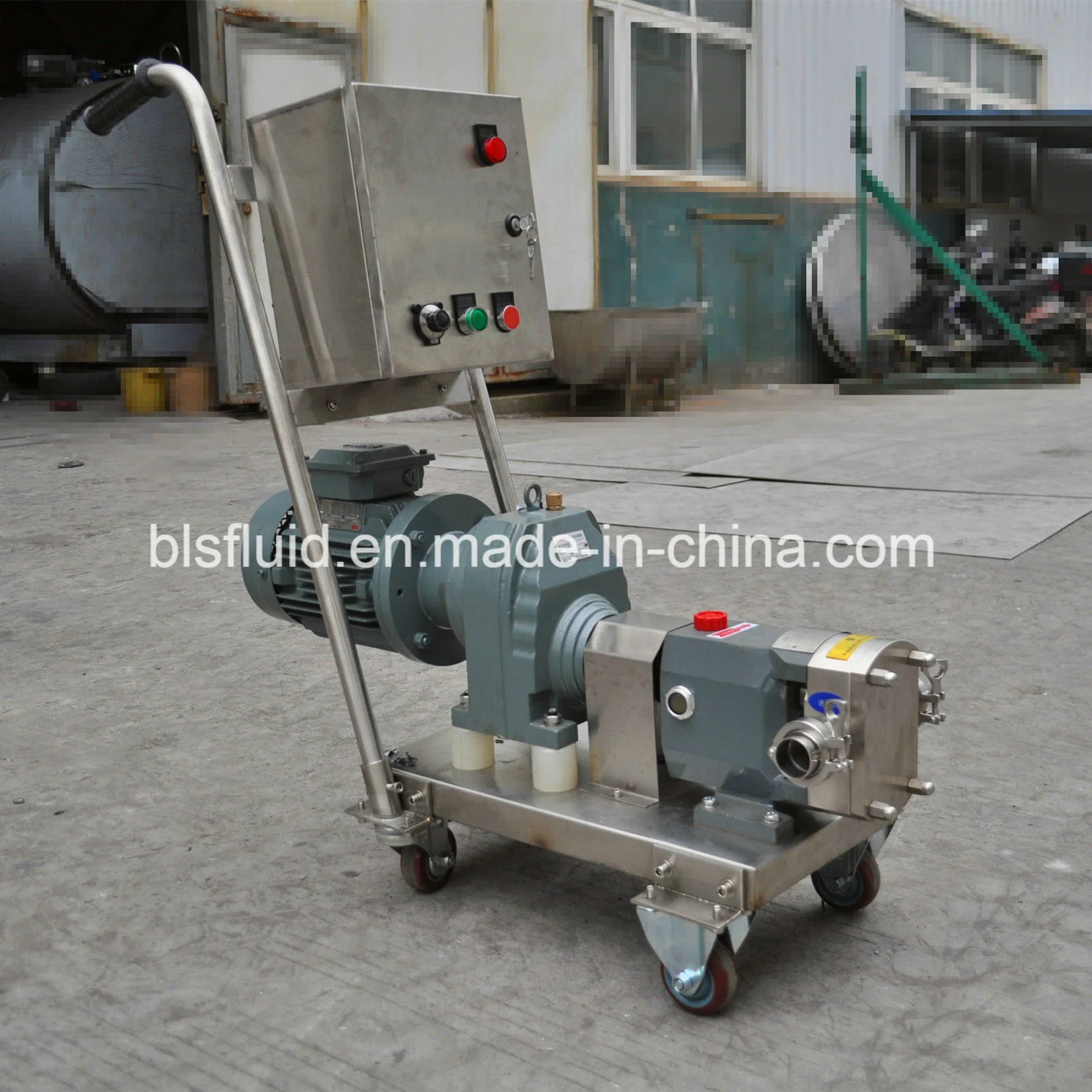

three lobe rotor industrial oil pump
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can
change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material
is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump.
Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or
high resistance dosing transfer.
Technical parameters:
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump.
Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.
Application range:
1) food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2) fruit concentration: tomoto paste, pudding, juice, jam and jelly.
3) paste products: fats, grease and etc.
4) cosmetic: face cosmetic, abluent, fixature, spice and so on.
5) medicine: extract, emulsion and pill plasm.
6) chemical industry: dyes, grease, dissovant, resin and polymer
More specification for reference:
Package and delivery
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our service
three lobe rotor industrial oil pump
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can
change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material
is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump.
Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or
high resistance dosing transfer.
Technical parameters:
| Model | L/100R (L) | rpm | Flow rate (L/H) | Power (kw) | Inlet | Connection typec |
| BLS-3 | 3L | 200-500 | 300-800 | 0.55 | Φ25*1.5 | clamp union flange |
| BLS-6 | 6L | 200-500 | 650-1600 | 0.75 | Φ25*1.5 | |
| BLS-8 | 8L | 200-500 | 850-2160 | 1.5 | Φ32*1.5 | |
| BLS-12 | 12L | 200-500 | 1300-3200 | 2.2 | Φ38*1.5 | |
| BLS-20 | 20L | 200-500 | 2100-5400 | 3 | Φ8*1.5 | |
| BLS-30 | 30L | 200-400 | 3200-6400 | 4 | Φ2*1.5 | |
| BLS-36 | 36L | 200-400 | 3800-7600 | 4 | Φ50.8*1.5 | |
| BLS-52 | 52L | 200-400 | 5400-11000 | 5.5 | Φ63.5*1.5 | |
| BLS-66 | 66L | 200-400 | 7100-14000 | 7.5 | Φ63.5*1.5 | |
| BLS-78 | 78L | 200-400 | 9000-18000 | 7.5 | Φ76*2 | |
| BLS-100 | 100L | 200-400 | 11000-22000 | 11 | Φ76*2 | |
| BLS-135 | 125L | 200-400 | 15000-30000 | 15 | Φ89*2 | |
| BLS-160 | 160L | 200-400 | 17000-34000 | 18.45 | Φ102*2 | |
| BLS-200 | 200L | 200-400 | 21600-43000 | 22 | Φ102*2 |
Characteristic
Lobe pump belongs to positive displacement pump, flow can be controlled accurately and can change to variable pump conveniently.
The rotation speed of lobe pump is very low, normally between 100rpm and 500rpm, the material is sent out smoothly and the component is not changed.
Lobe pump can transfer high viscosity material, so it also called colloid pump.
Lobe pump can be made as rather high output pressure conveniently, suitable to long distance or high resistance dosing transfer.
Application range:
1) food and beverage: dairy, chocolate, syrup, cream, cereal mash, beer and latex.
2) fruit concentration: tomoto paste, pudding, juice, jam and jelly.
3) paste products: fats, grease and etc.
4) cosmetic: face cosmetic, abluent, fixature, spice and so on.
5) medicine: extract, emulsion and pill plasm.
6) chemical industry: dyes, grease, dissovant, resin and polymer
More specification for reference:
Package and delivery
Our company
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our service
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confirmation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
